Description

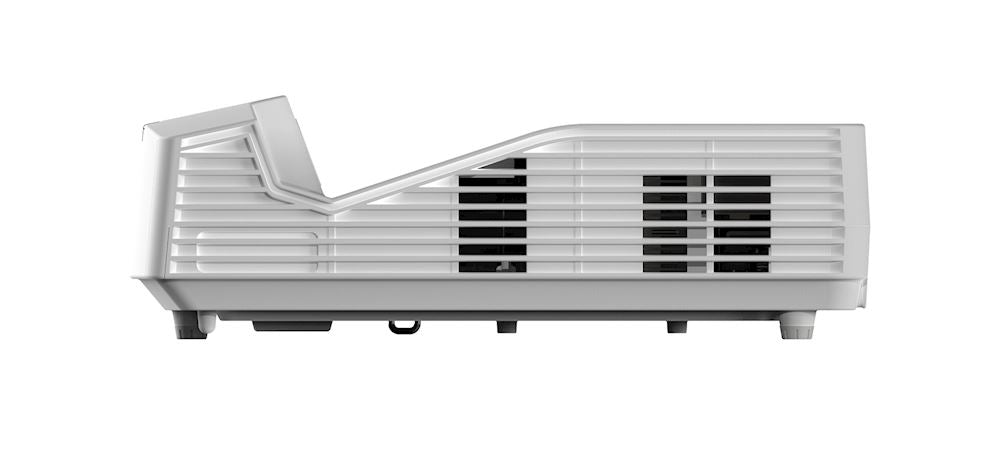

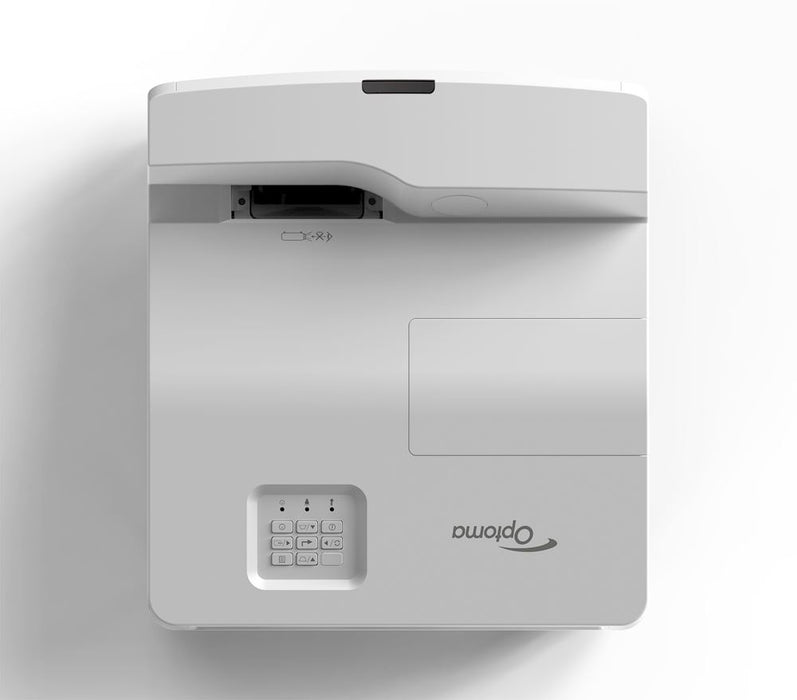

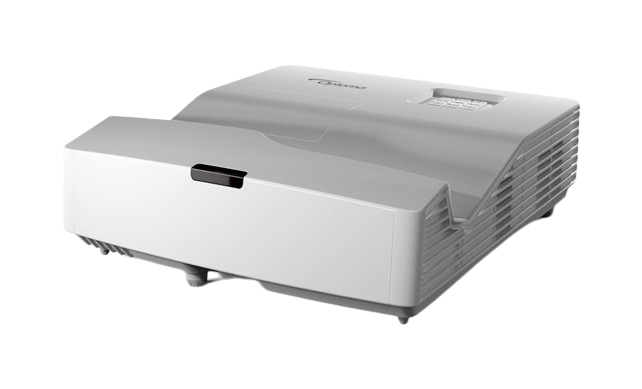

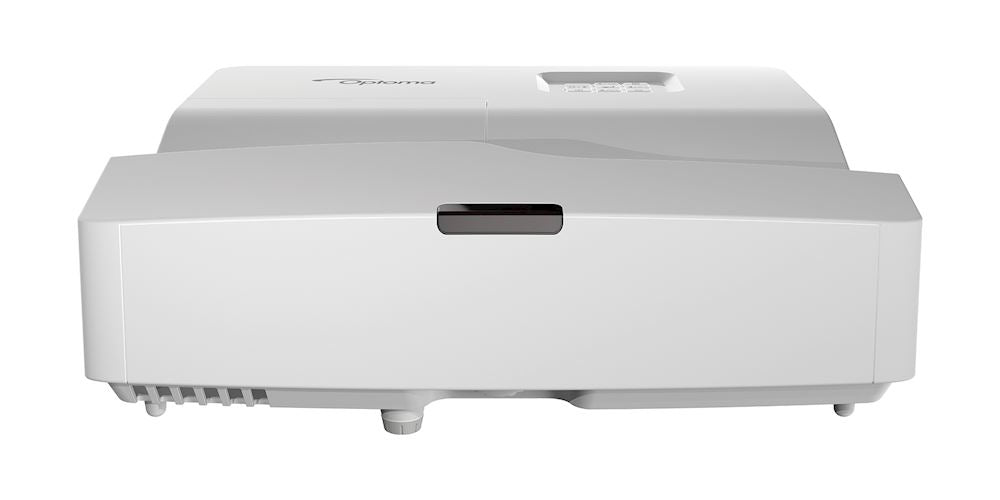

Ultra short throw projector
Beam bright, eye catching content with the W340UST projector. Perfect for meeting rooms and classrooms, this projector is designed to be used at any time of day.
Incorporating an ultra short throw lens means it can project a 100” image from inches away. And having the projector installed so close to the wall avoids any shadows being cast across the screen from the presenter(s).
Installation and setup are simple with four corner adjustment.
Additionally, it provides a complete package for engaging learning with many new features, including two HDMI inputs, powered USB port, native office viewer and a powerful 16W built-in speaker.
Specifications
Display/image
| Display technology |
DLP™
|
| Resolution |
WXGA (1280x800)
|
| Brightness |
4,000 lumens
|
| Contrast ratio |
22,000:1
|
| Native aspect ratio |
16:10
|
| Aspect ratio - compatible |
4:3,16:9
|
| Keystone correction - horizontal |
+/-4°
|
| Keystone correction - vertical |
+/-4°
|
| Horizontal scan rate |
15.375 ~ 91.147Khz
|
| Vertical scan rate |
24 ~ 85(120 for 3D)Hz
|
| Uniformity |
80%
|
| Screen size |
85" ~ 115" diagonal
|
Lamp info
| Light source type |
Lamp
|
| Lamp watts |
240
|
| Lamp life hours (up to) |
4000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+)
|
Optical
| Throw ratio |
0.27:1
|
| Projection distance |
19.29" - 25.98"
|
| Zoom type |
Fixed
|
| Focal length (mm) |
3.72mm/0.146"
|
| Native offset |
118%
|

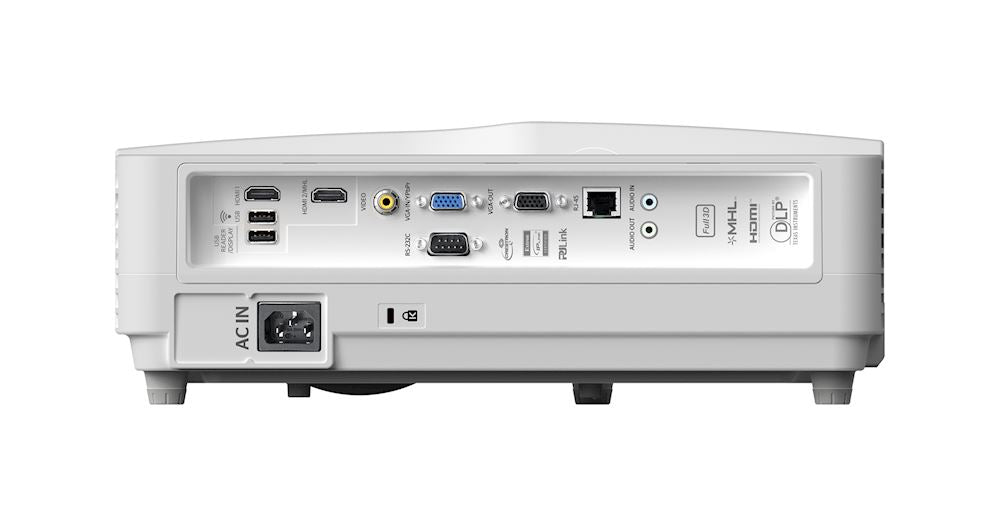

Connectivity
| Connections |
|
|||
| LAN - wireless networking |
Yes - optional
|
General
| Noise level (min) |
26dB
|
| Noise level (max) |
28dB
|
| PC compatibility |
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
|
| 3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
|
| Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
|
| Remote control |
Data remote with laser and mouse function
|
| Speaker count |
1
|
| Watts per speaker |
16W
|
| In the box |
AC power cord
Remote control 2x AAA batteries Basic user manual |
| Operating system compatibility |
Windows 7 / 8 / 8.1 / 10, MacOSX 10.9 +, Android 4.0+, iOS 8+
|
| Optional wireless models |
HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200, WUSB
|
Networking
| LAN - control |
Yes
|
| LAN - display |
Yes
|
| LAN - wireless networking |
Yes - optional
|
Power
| Power supply |
100 ~ 240V, 50 ~ 60Hz
|
| Power consumption (standby) |
0.5W
|
| Power consumption (min) |
200W
|
| Power consumption (max) |
275W
|
Weight and dimensions
| Dimensions (W x D x H) |
13.5" x 15.08" x 4.41"
|
| Gross weight |
12.63 lbs
|
| Net weight |
10.74 lbs
|
