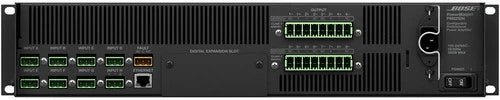

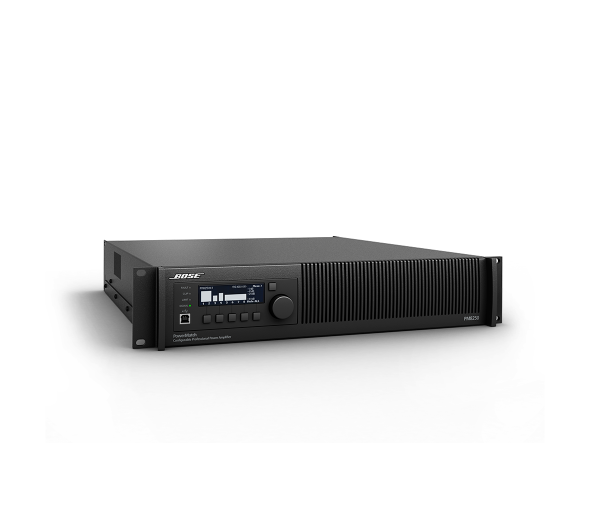

PowerMatch PM8250N Configurable Multichannel Amplifier (8x250w)
Experience unparalleled performance and versatility with the Bose Professional PowerMatch PM8250N Power Amplifier. This highly configurable, professional-grade amplifier is designed to deliver concert-quality sound for fixed installations. Whether you're outfitting a house of worship, retail store, or conference centre, the PM8250N easily adapts to your needs. With Ethernet-based networking for seamless control and monitoring, and a front-panel USB connection for direct PC configuration, this amplifier ensures a reliable and powerful audio solution.
Key Features
-
QuadBridge Technology: Configure each 4-channel block in Mono, V-Bridge, I-Share, or Quad modes to allocate power as needed. This technology supports both low impedance and 70/100V loudspeaker loads.
-
ControlSpace Designer Software: Fully configure the amplifier via USB or Ethernet connections—access advanced features such as parametric EQ, load sweep, and auto standby.
-
Auto-Standby/Auto-Wake Function: This energy-saving feature automatically transitions the system into standby mode when audio levels are low and reactivates it when audio resumes, reducing power consumption.
-
Dual Voltage and Current Feedback Loop: This proprietary design combines Class-D efficiency with precise control over current and voltage, ensuring optimal frequency response and minimal distortion.
-
PeakBank Power Supply: A regenerative 4-quadrant power supply provides higher power density and efficient low-frequency response.
-
Fast-Tracking Power Factor Correction (PFC): Manages AC mains current efficiently, allowing for maximum output without power fluctuation.
Specifications:
Amplification:
- Channel Separation (Crosstalk): > 65 dB, adjacent channels at 1 kHz
- Frequency Response: 20 Hz – 20 kHz (±0.5 dB) at 1 W
- Gain, High-Impedance: 42 dB
- Gain, Low-Impedance: 33 dB, Mono mode / 39 dB, V-Bridge mode / 33 dB, I-Share mode / 39 dB, Quad mode
- Maximum Peak Power, Symmetrical: 500 W
- Number of Channels: 8
- Power Class: Class D
- Rated Power: Symmetrical: 250 W per channel at 2 Ω, 4 Ω, 8 Ω
- SNR: > 99 dB (1 dB below rated power, A-weighted)
- THD+N: < 0.4% at 1 W (20 Hz – 20 kHz)
Physical:
- Colors: Black
- Cooling System: Microprocessor-controlled, variable-speed fans, front to rear airflow
- Mounting/Rigging Provisions: Rack-mounting
- Net Weight: 28.4 lb (12.9 kg)
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Product Dimensions (H×W×D): 3.5 in × 19.0 in × 20.7 in (88 mm × 483 mm × 525 mm)
- Rack Spaces: 2
- Shipping Weight: 34.0 lb (15.4 kg)
