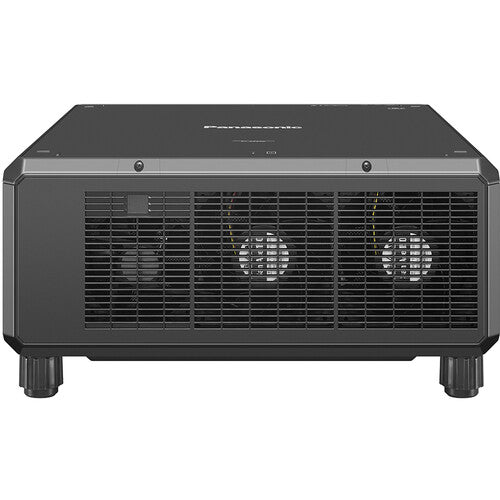

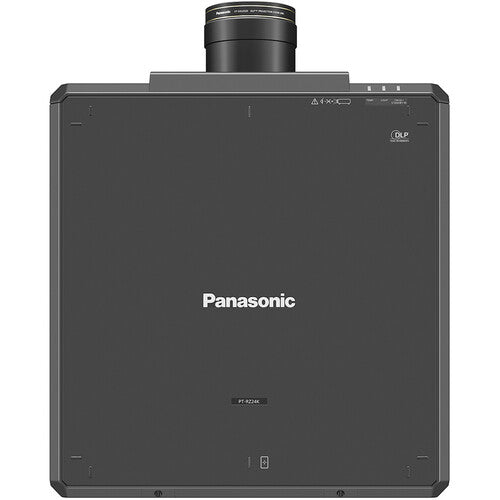

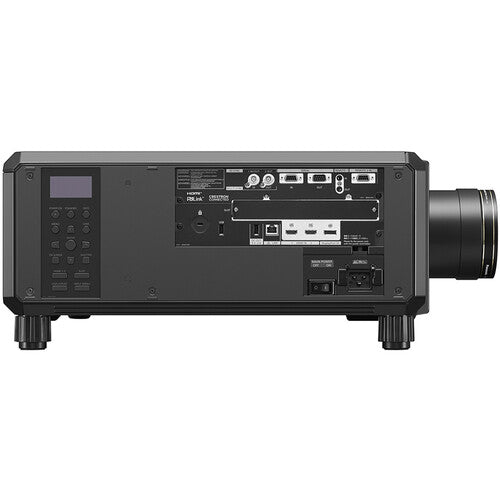

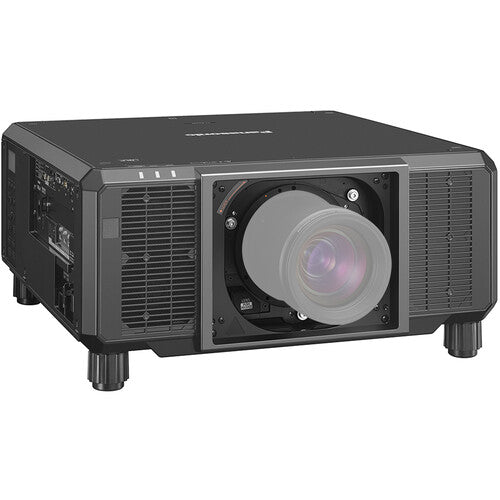

Panasonic PT-RZ24KE, 21000 lumens, WUXGA 3 Chip DLP Laser Projector - no lens

The Panasonic PT-RZ24KE is a high-brightness, 3-Chip DLP™ laser projector designed for large venues and demanding professional applications, offering 20,000 lumens of brightness and WUXGA resolution. It is known for its compact size, robust construction, and minimal maintenance requirements due to its laser light source.

Key Features:

• Ease of installation: Its small size for a 20,000-lumen class projector and 360-degree installation flexibility allows it to be used in locations previously too small for similar-performance models.
• Reliability: The hermetically sealed optical block and high-efficiency liquid-cooling system enable maintenance-free operation for many hours, which is ideal for events and 24/7 use.
• Image Quality: The 3-chip DLP technology ensures high brightness and vivid color, and features like Gradation Smoother and black-level adjustment support seamless edge-blending for multi-projector setups.
• Connectivity: The Intel® SDM-ready slot is noted as a key feature, expanding connectivity with proprietary or third-party function boards.

Specifications:

• Projector type: 3-Chip DLP Projector
• Display method: DLP chip x 3, DLP projection system
• Display Device -> Panel size: 20.3 mm (0.8 in) diagonal
• Display Device -> Number of pixels: 2,304,000 (1920 x 1200 pixels) x 3
• Light source: Laser diodes
• Light output: 20,000 lm
• Light output (ANSI): 20,000 lm
• Light output (Center): 21,000 lm (Center)
• Resolution: WUXGA (1920 x 1200 pixels)
• Contrast Ratio (typ.): 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
• Aspect Ratio: 16:10
• Screen size (diagonal): 1.78–25.40 m (70–1000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95, 5.08–15.24 m (200–600 in) with ET-D3LEU100/D3LEW200
• Center-to-corner zone ratio: 90%
• Lens: Optional (no lens included with this model)
• Operation: 24/7
• Dimensions (WxHxD)mm: Approx. 550 x 220 x 570 mm
• Weight kg: 35 kg (77.2 lbs)
