Description
High brightness WUXGA ultra short throw laser projector
The ZU500USTe is powered by long-lasting, low maintenance DuraCore laser light source. The lamp-less and filter-free design vastly reduces running costs for a lower total cost of ownership.
Weighing only 12.5lbs, this projector can be mounted just inches away from a wall or surface and can project an image size of over 100 inches.

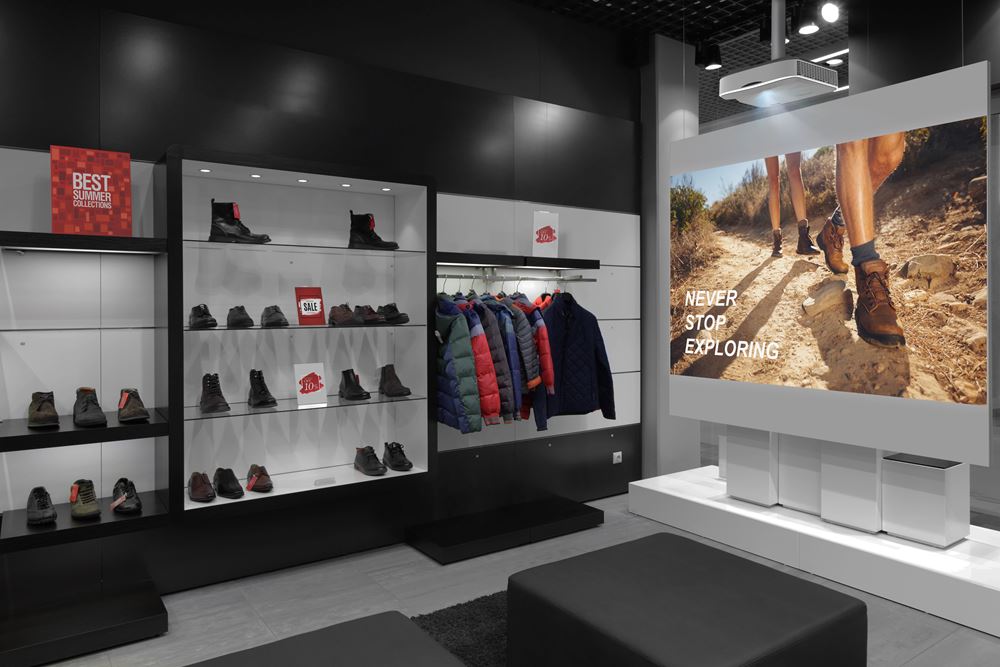

Supporting 24/7 operation and versatile orientation, the ZU500USTe is a flexible, powerful and bright ultra short throw projector that makes for a superb signage solution where space or accessibility can be limited, such as shop windows or retail displays.
Specifications
Display/image
| Display technology |
DLP™
|
| Resolution |
WUXGA (1920x1200)
|
| Brightness |
5,000 lumens
|
| Contrast ratio |
100,000:1
|
| Native aspect ratio |
16:10
|
| Aspect ratio - compatible |
16:9,16:10
|
| Keystone correction - horizontal |
10°
|
| Keystone correction - vertical |
10°
|
| Uniformity |
85%
|
| Screen size |
132" ~ 155" diagonal
|
Lamp info
| Light source type |
Laser
|
| LASER life |
30,000 hours
|
Optical
| Throw ratio |
0.253:1
|
| Projection distance |
28.62" - 33.07"
|
| Zoom type |
Fixed
|
| Focal length (mm) |
3.7mm/0.146"
|
| Native offset |
117%
|
Connectivity
| Connections |
|
General
| Noise level (min) |
33dB
|
| Noise level (max) |
35dB
|
| PC compatibility |
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
|
| 3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| IP rating |
IP5x
|
| OSD / display languages |
17 languages: Arabic, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional), Turkish
|
| 24/7 operation |
Yes
|
| Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
|
| Remote control |
Backlit ProAV remote
|
| Heat dissipation |
1,608BTU/hour
|
| Speaker count |
1
|
| Watts per speaker |
10W
|
| In the box |
AC power cord
Remote control 2x AAA batteries Basic user manual |
| Optional wireless models |
HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200, WUSB
|
Networking
| LAN - control |
Yes
|
| LAN |
Yes
|
Power
| Power supply |
100 ~ 240V, 50 ~ 60Hz
|
| Power consumption (standby) |
0.5W
|
| Power consumption (min) |
250W
|
| Power consumption (max) |
400W
|
Weight and dimensions
| Dimensions (W x D x H) |
15.08" x 12.52" x 4.37"
|
| Gross weight |
17.2 lbs
|
| Net weight |
12.79 lbs
|
