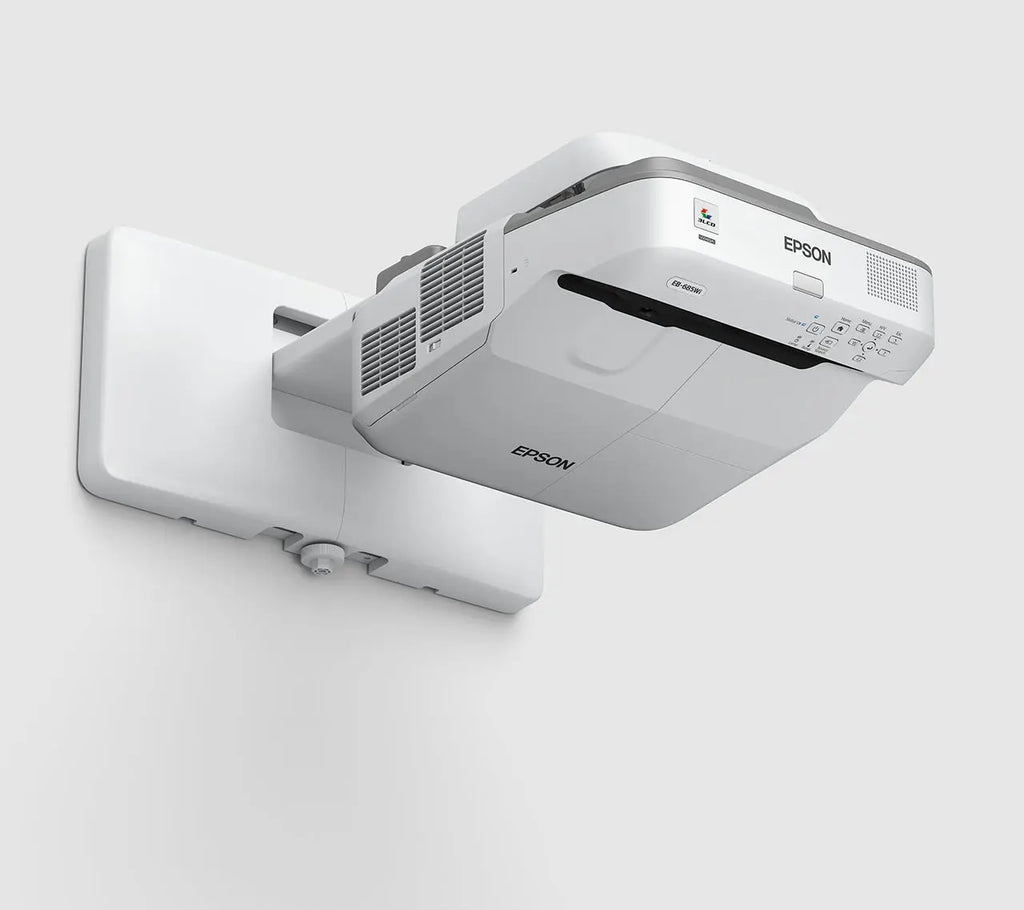

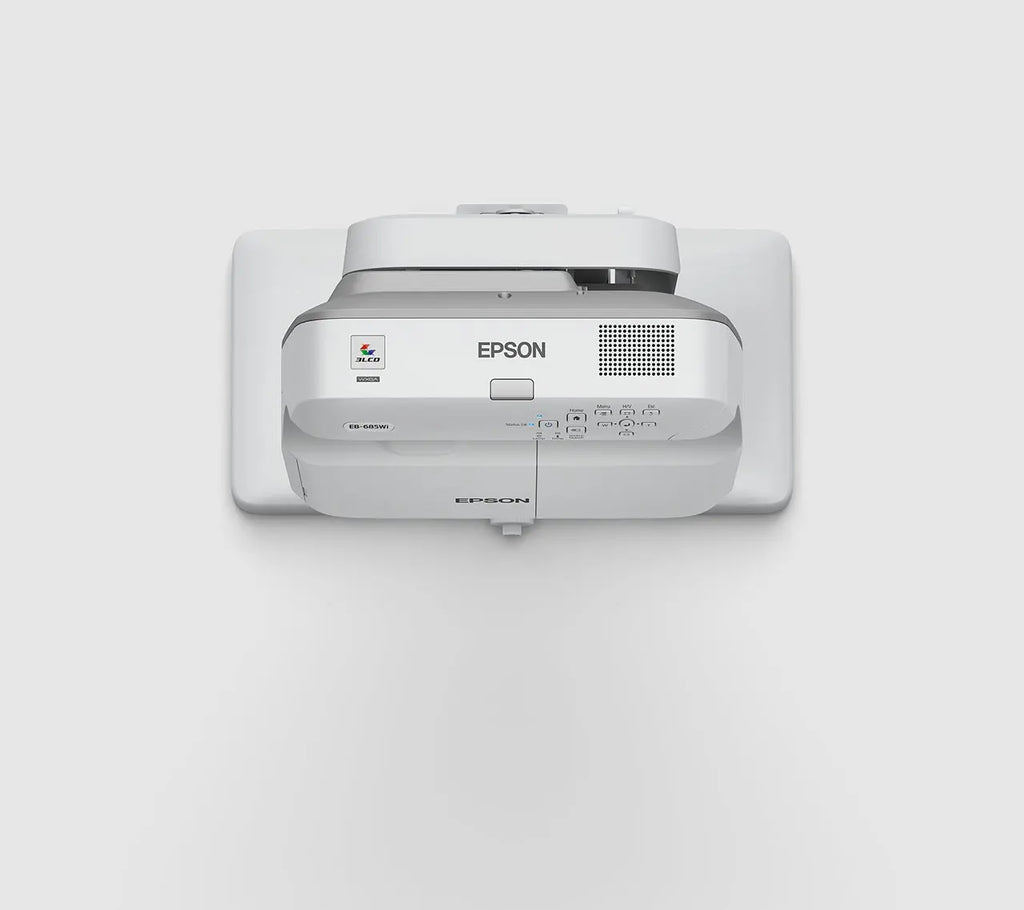

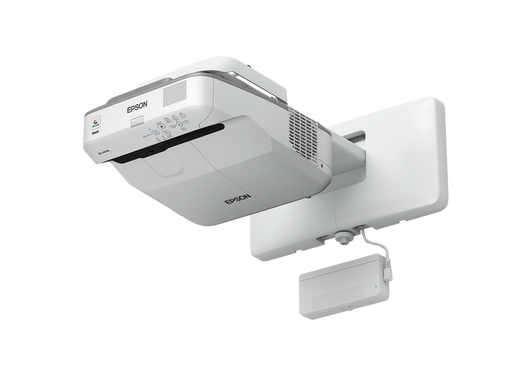

HD-ready Ultra Short Pen-Interactive Projector
This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,300 lumens and HD-ready WXGA resolution, the EB-685Wi's ultra-short-throw design allows you to present large images from a very short distance with minimized shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.
Key Features:
-
Up to 100-inch display and outstanding quality HD-ready WXGA resolution with Epson 3LCD technology
-
Dual-pen annotation: Two users can annotate at once using the included pens
-
Reliable: Improved reliability and a longer lamp life
-
Multi-screen interactivity: Combine two projectors to create one large interactive display
-
Wireless Connectivity (Optional) allows content to be shown from a range of devices
Specifications:
| Projection System
|
3LCD Technology
|
| LCD Panel
|
0.59 inch with D9
|
| Color Light Output
|
3,500 Lumen- 2,900 Lumen (economy) In accordance with IDMS15.4
|
| White Light Output
|
3,500 Lumen - 2,900 Lumen (economy) In accordance with ISO 21118:2020
|
| Resolution
|
WXGA 2
|
| Resolution Enhancement
|
HD ready
|
| Aspect Ratio
|
16:10
|
| Contrast Ratio
|
14,000 : 1
|
| Light source
|
Lamp
|
| Lamp
|
250 W, 5,000 h durability, 10,000 h durability (economy mode), 9,000 h durability (economy mode)
|
| Keystone Correction
|
Manual vertical: ±3 °, Manual horizontal ±3 °
|
| Colour Video Processing
|
10 Bits
|
| 2D Vertical Refresh Rate
|
100 Hz - 120 Hz
|
| Colour Reproduction
|
Upto 1.07 billion colours
|
| Throw Ratio
|
0.28 - 0.37:1
|
| Zoom
|
Digital, Factor:1 - 1.35
|
| Lens
|
Optical
|
| Screen Size
|
60 inches - 100 inches
|
| Projection Distance Wide
|
0.4 m (60-inch screen ),
|
| Projection Distance Tele
|
0.6 m (100-inch screen ),
|
| Projection Lens F Number
|
1.6
|
| Projection Lens Focal Length
|
3.7 mm
|
| Projection Lens Focus
|
Manual
|
| Offset
|
6 : 1
|
| Supply Voltage
|
AC 100 V - 240 V, 50 Hz - 60 Hz
|
| Product dimensions
|
367 x 400 x 149 mm (Width x Depth x Height)
|
| Product weight
|
5.9 kg
|
| Noise Level
|
Normal:35 dB (A) - Economy:30 dB (A) - Eco2:29 dB (A)
|
| Supported Temperature
|
Operation 5° C - 35° C, Storage -10° C - 60° C
|
| Room Type / Application
|
Meeting room / Classroom
|
| Positioning
|
Wall Mounted |
