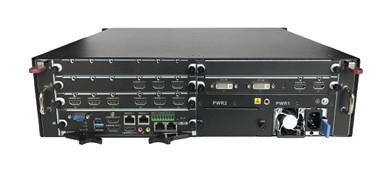

Dahua NVD1205DH-4I-4K Ultra-HD Network Video Decoder

Dahua NVD1205DH-4I-4K Ultra-HD Network Video Decoder

Key Features：

• Standard 2.5U case, elegant appearance
• Plug-in board design, easy to use and maintain
• H.265+/ H.265/ H.264/ MPEG4/ MPEG2/ MJPEG video decoding
• Ultra-high decoding ability, up to 32 Megapixels
• 2ch HDMI and 2ch DVI-I input, supports 4K collection
• Supports 1/4/6/8/9/16/25/36 and free split
• Supports alarm, RS232, RS485
• Splicing screens control for zoom/merge/roam/overlay
• Supports redundant power, stable, and reliable

Specifications:

• Processor: Embedded processor
• Operating System: LINUX
• Slot: 1 Main board, 1 Decoding board(6CH), 1 Decoding board(3CH), 1 Collection board, 2 Blank panel
• Video Format: H.265+/ H.265/ H.264/ MPEG4/ MPEG2/ MJPEG
• Audio Format: PCM/G711/AAC
• Power Supply: AC100-127V, 200-240V, 47Hz-63Hz
• Power Consumption: ≤180W
• Working Temperature: -10℃~+55℃
• Working Humidity: 10% ~ 95%, 86Kpa ~ 106Kpa
• Unit Dimension: 2.5U, 440×436.6×110mm(17.32 × 17.19 × 4.33 inch), (W*D*H)
• Weight: 11.25kg(24.80 lb)
