Description

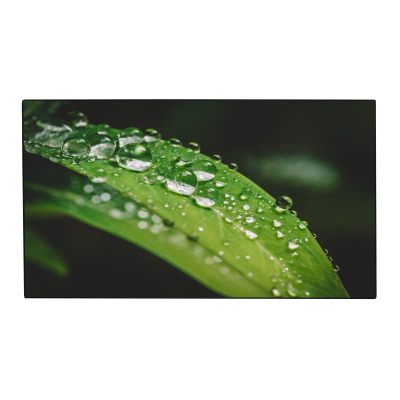

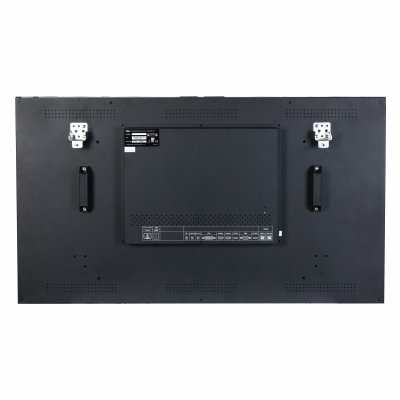

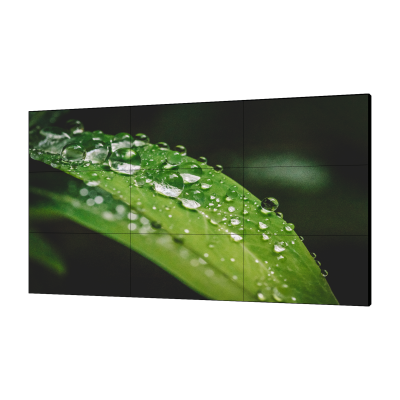

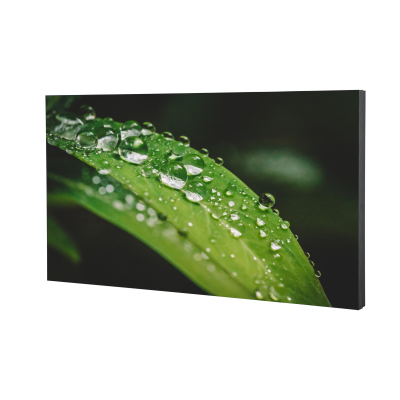

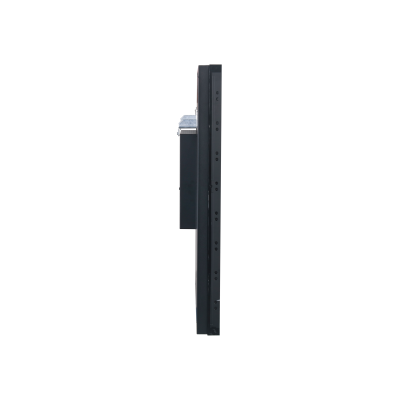

55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm)
Key Features:
- Industrial level ADS LCD panel, suitable for continuous 24h/7 operation
- Ultra-narrow 1.7mm B-to-B (Panel Bezel to Panel Bezel) design
- Anti-glare panel, vivid and memorable image quality
- Factory calibration technology for high color uniformity
- Built-in 3D noise reduction system and picture splicing function
- Abundant interfaces HDMI, DVI, VGA, DP (UHD daisy chain), RS232, Audio
- Up to 4K@60Hz signal input by DP IN or HDMI 1 interface, up to 4K@30Hz signal output by DP OUT interface
- Infrared, RS232 dual mode, supporting remote control by computer
- Professional thermal design to extend device lifespan
- Built-in power, low energy consumption, ultra-quiet
- Modular structure design, multiple installation modes
- Widely used in surveillance center, command center, meeting room, commercial display scenes, etc.
Specifications:
Diagonal Size |
55"(16:9) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Panel Type |
ADS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1920×1080 (FHD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bezel Width |
B2B: 1.7mm (Panel Bezel to Panel Bezel), 0.9mm (T/L), 0.8mm (B/R) A2A: 2.45mm (Active area to Active area), 1.5mm (T/L), 0.95mm (B/R) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backlight |
Direct LED |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brightness |
500 cd/m² |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contrast Ratio |
1200:1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Density |
40dpi |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Viewing Angle |
H178°, V178° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time (G-to-G) |
8ms |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color Depth |
10-bit (1.07b) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color Temperature |
10,000K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surface Treatment |
Haze 28%, 3H |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF |
50,000h |
Installation Mode |
Floor-standing, wall-mounted |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VESA |
600×400mm, M6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Control Mode |
Infrared, RS232 dual mode, supporting remote control by computer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
28kg (61.73Ib) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
33kg (72.75Ib) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimension (W×H×D) |
1212.7mm×683.5mm×121.7mm (47.7"×26.9"×4.8") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Package Dimension (W×H×D) |
1360mm×945mm×280mm (53.5"×37.2"×11.0") |
